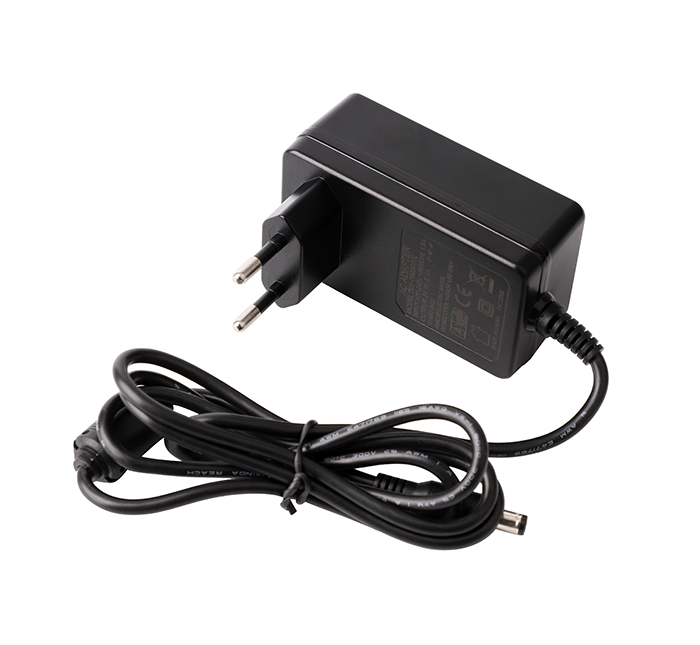

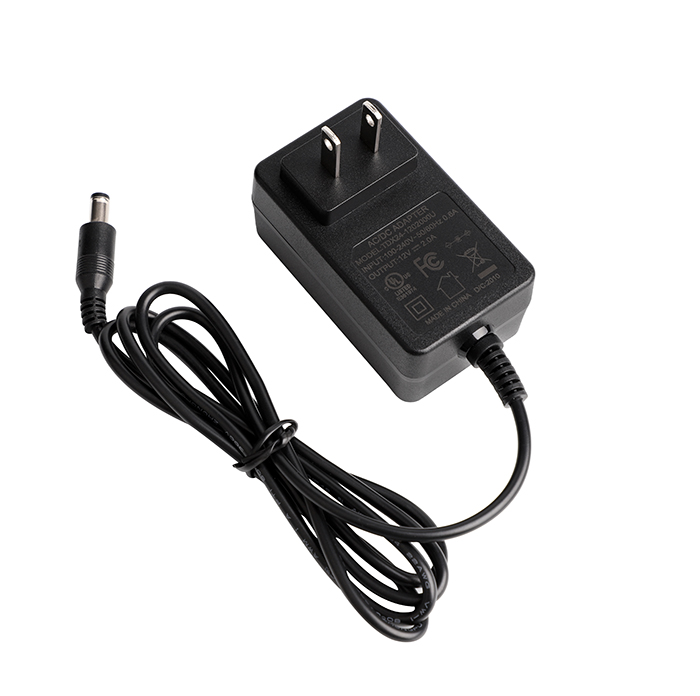

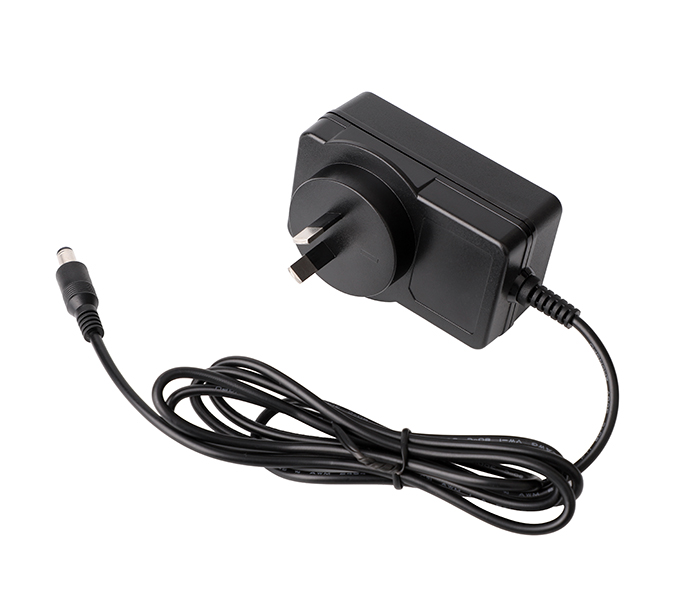

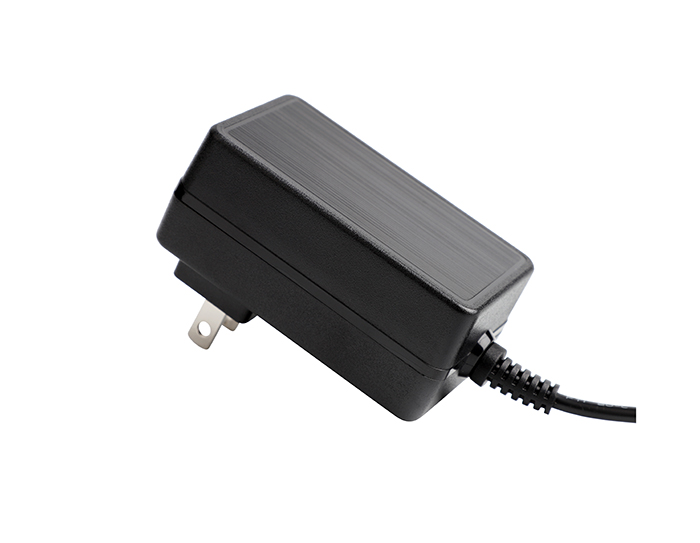

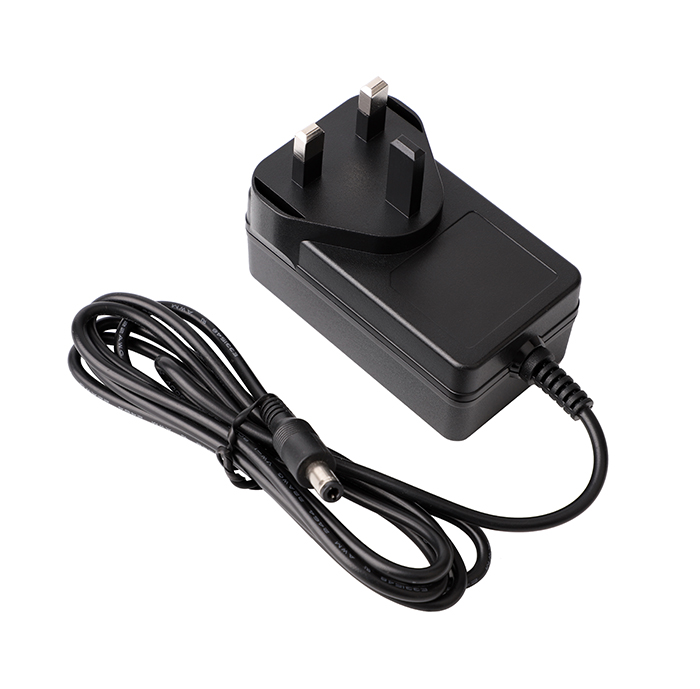

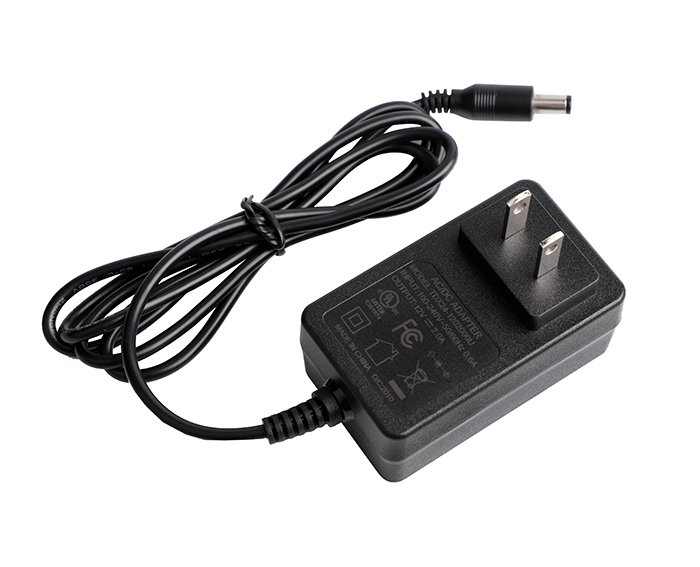

• Model：TDX-2402000
• Power：24W Max
• Output Voltage：DC 24V
• Input：AC 100-240V, 50/60Hz
• Efficiency: DoE ERP VI Level
• Plug: US EU UK AU plug
• Standard: IEC62368, IEC60950, EN62368, EN60950
• Certifications: UL,CE,FCC,ETL,GS,CB,BS,SAA,PSE,KC
| Model No. | TDX-2401000 |
| AC Input | 100-240v 50/60hz |
| DC Output | 24V 1A |
| DC connector | 5.5x2.1mm, 5.5x2.5mm, 3.5x1.35mm or others |
| DC Cable Length | 1m/1.2m/1.5m/1.8m/2m/2.5m/3m or customized |
| AC plug | US, EU, UK, AU (opitional) |
| Dimension | 70*40*30mm |
| Weight | 126g |
| Protection | Over voltage, Over current, Short circuit, Over temperature |
| Line Regulation | ±2% |
| Load Regulation | ±5% |
| Operation Temperature | 0 to +60℃ |
| Storage Temperature | -10 to +85℃ |
| Warranty | 2 years |
1. Over-Voltage protection
2. Over-Current protection
3. Short-Circuit protection
4. 100% Hi-pot&ATE(Chroma) Tested
5. 100% Burn-in under High
6. Ambient Temperature(40℃)
7. Low Ripple/Noise
8. MTBF Above 40000 HRS AT 25℃
9. LVD authentication
10. DOE ERP IV Efficiency

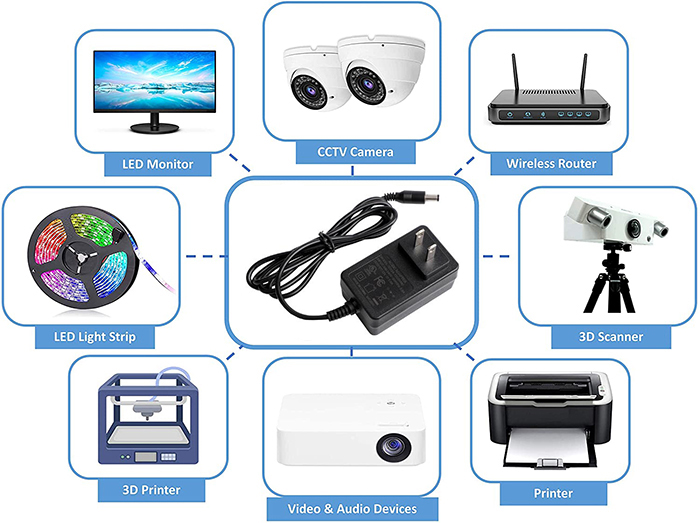

LED Lights, LED Strips, Vacuum Cleaner Robot, Humidifier, Massage Pillow, Air Cleaner, Set Top Box, Router, POS Machine, Label Printer, Thermal Printer, Aquarium, Water Purifier, Mini Projector, 3D Printer, Scooter, Car Fridge, Nail Polisher, External Hard Disk, Drone, DVR, NVR, CCTV Security Camera.
• Standard: IEC62368, IEC60950, EN62368, EN60950
• Certifications: UL,CE,FCC,ETL,GS,CB,BS,SAA,PSE,KC
