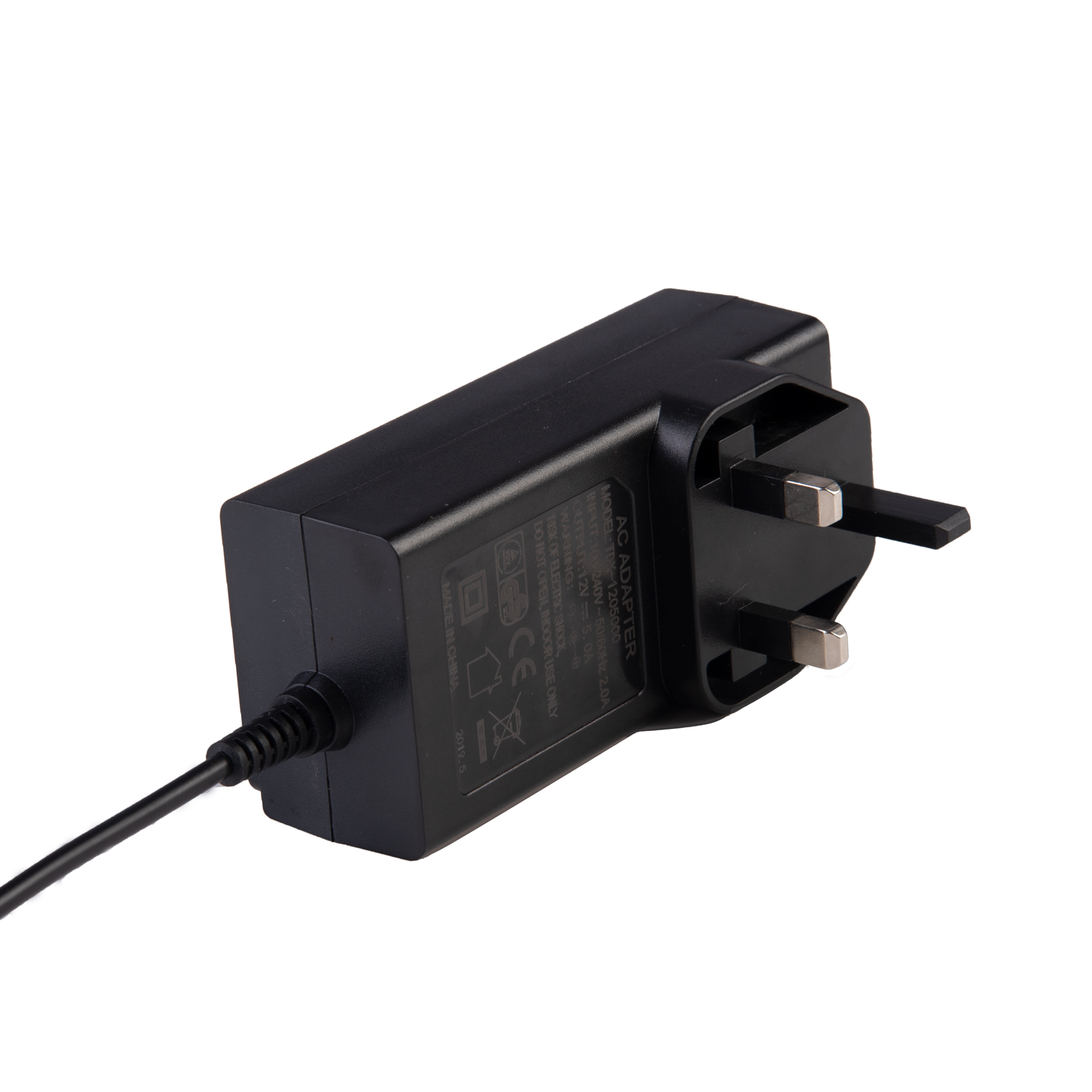

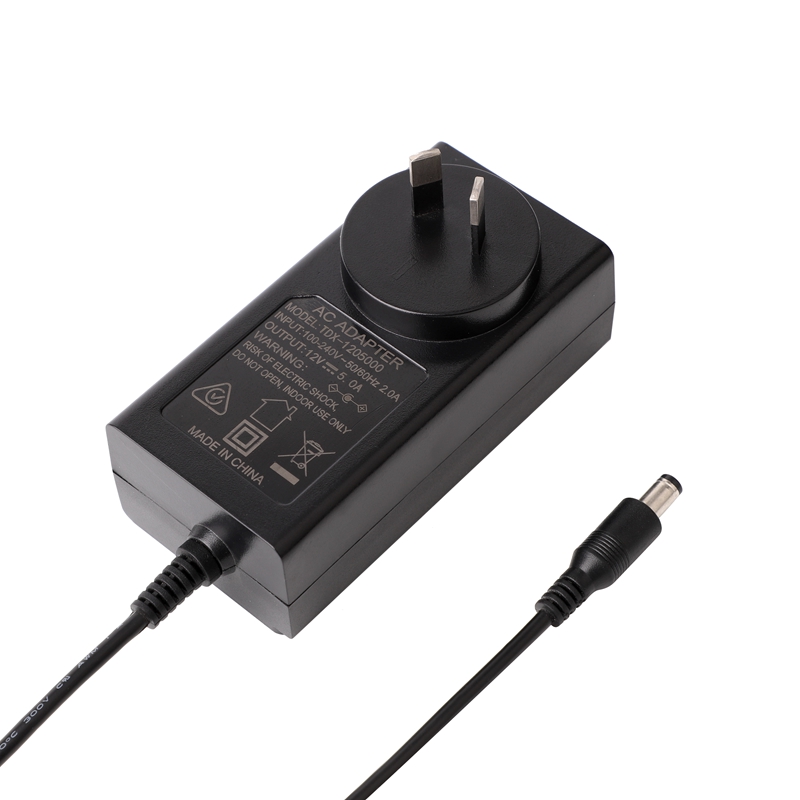

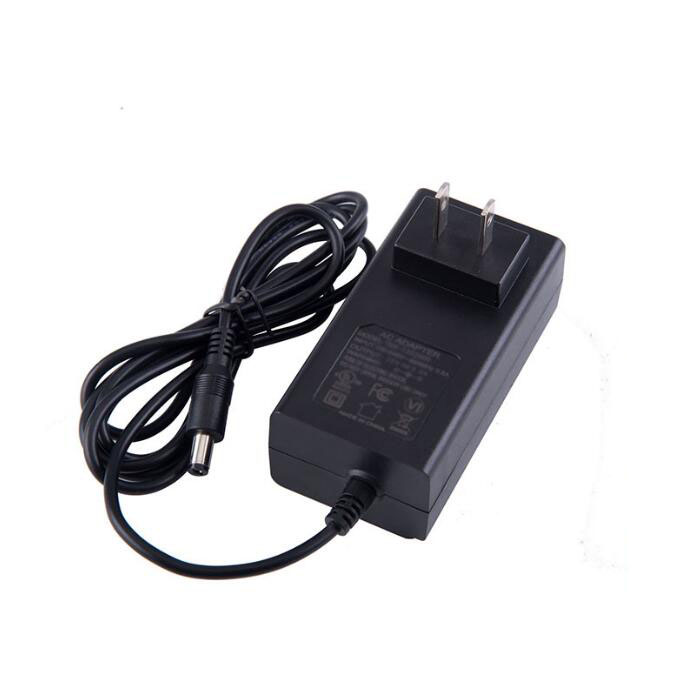

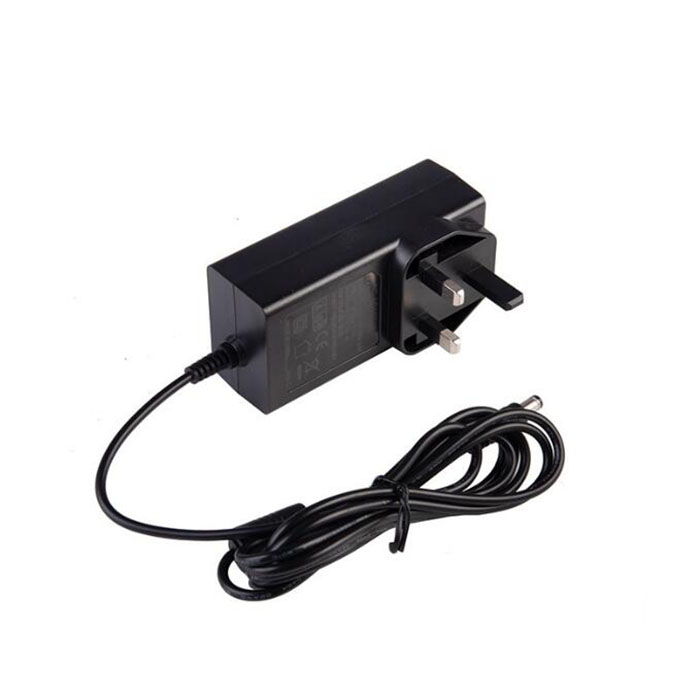

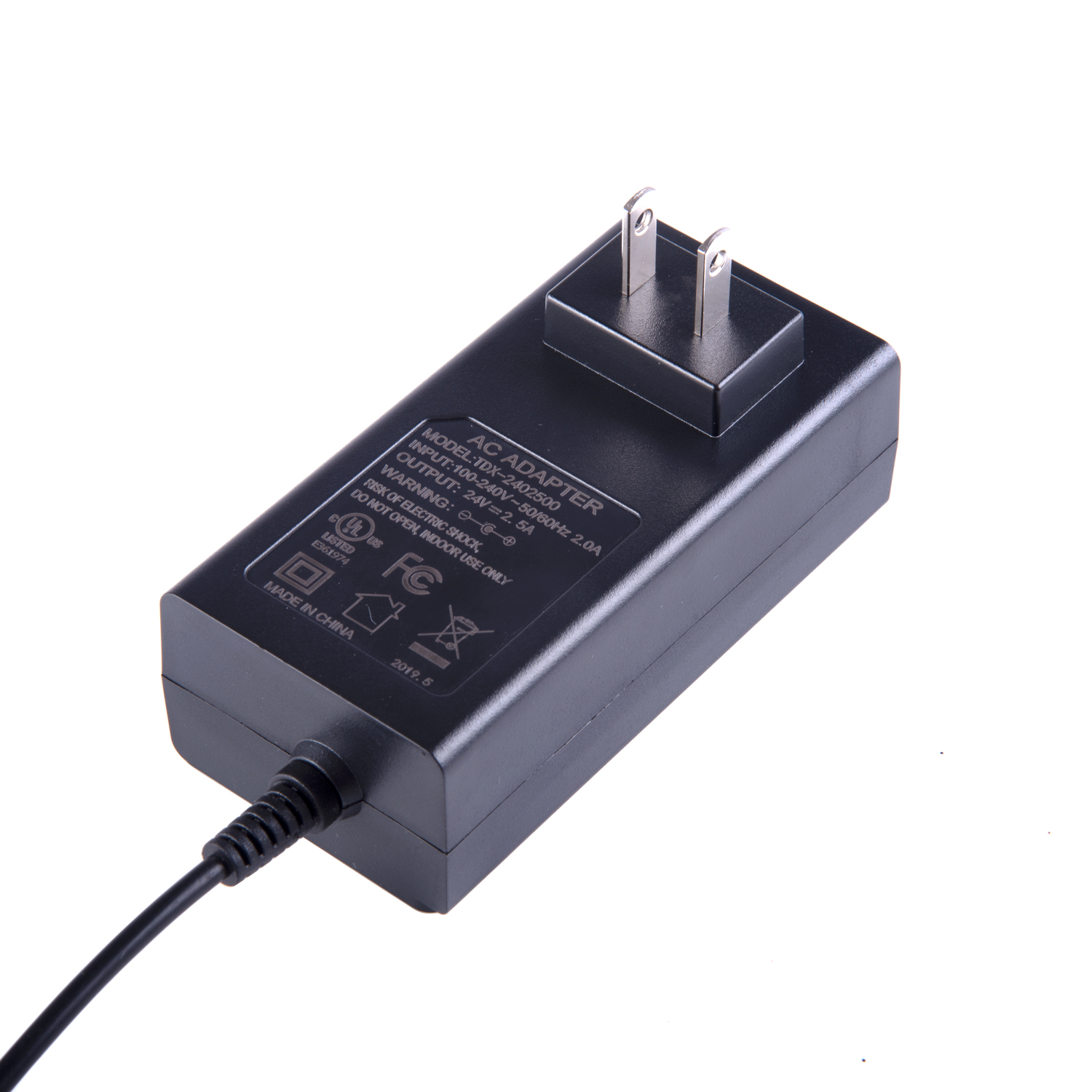

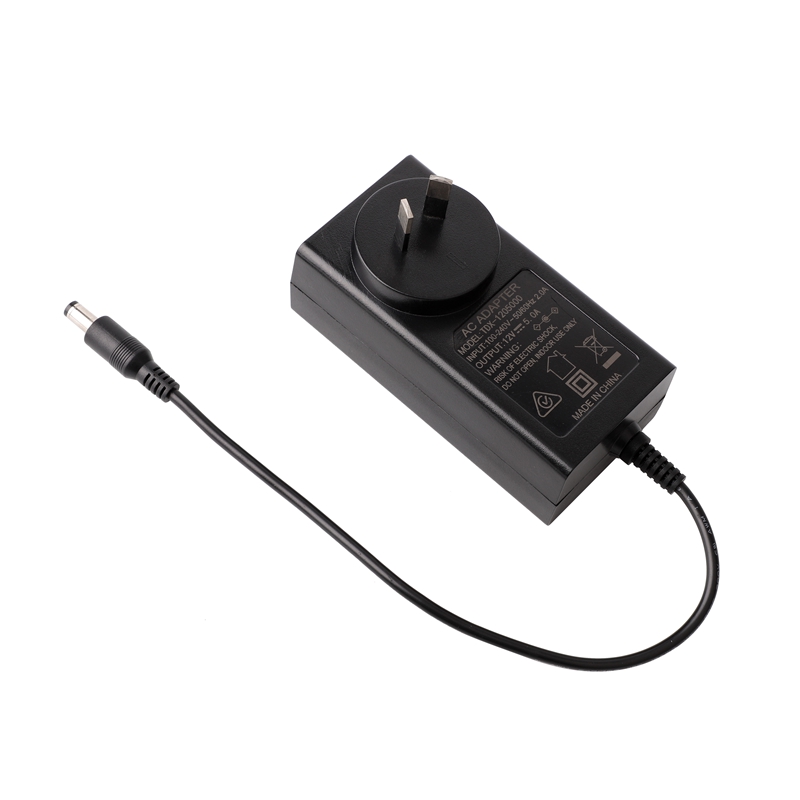

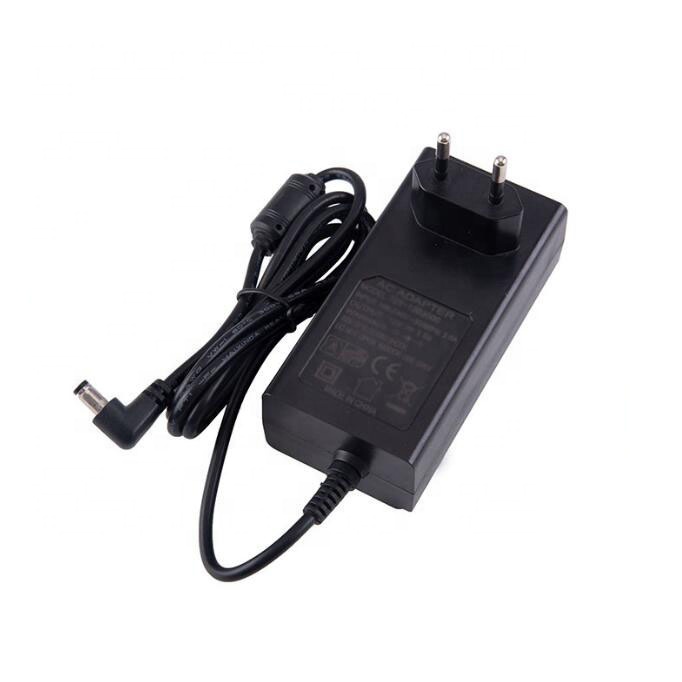

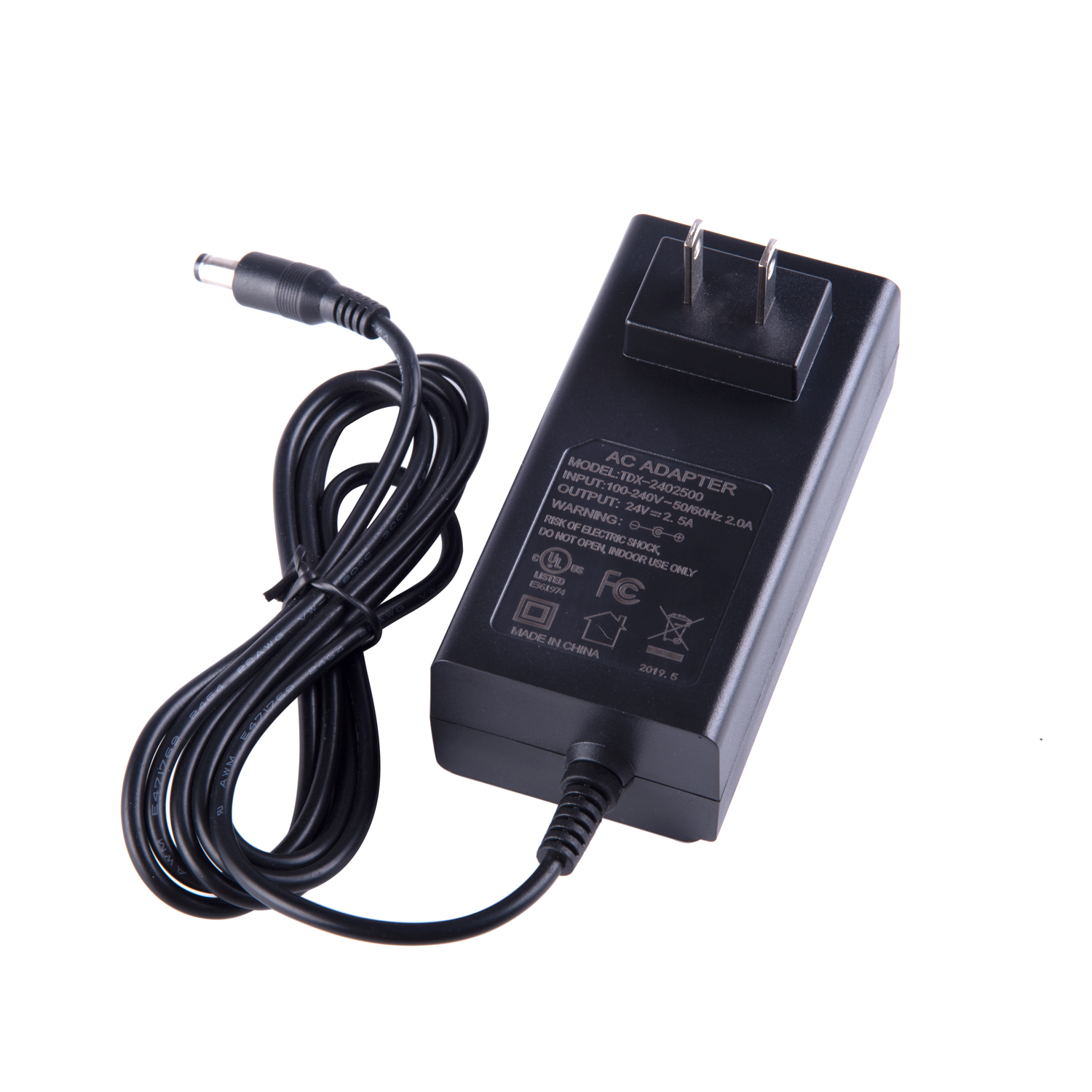

• Model：TDX-1204000
• Power：48W Max
• Output：12V 4A
• Input：AC 100-240V 50-60Hz
• Efficiency：ERP VI Level
• Type : Plug In
• Standard：IEC60950, IEC60065, IEC61558, IEC61347
• Certification: UL CE ROHS FCC KC GS SAA BS CB ETL RCM PSE ERP
| Input | Voltage Range | 100~240V |
| Frequency Range | 50/60HZ | |
| Efficiency | 85%min | |
| Output | DC Voltage | 12V |
| Rated Current | 4A | |
| Rated Power | 48W | |
| Voltage Tolerance | ±5% | |
| Line Regulation | ±1% | |
| Load Regulation | ±5% | |
| Enviroment | Working Temp | -10~+65℃ |
| Working Humidity | 20~90% RH non-condensing | |
| Storange Temp., Humidity | -20~+85℃, 10~95%RH | |
| Others | Certificates | UL CE-EMC CE-LVD RoHS FCC SAA CB C-tick KC etc. |
| Packing | Brown paper box, PE bag inside or customized | |
| LOGO | Can be customized |
1. Over-Voltage protection
2. Over-Current protection
3. Short-Circuit protection
4. 100% Hi-pot&ATE(Chroma) Tested
5. 100% Burn-in under High
6. Ambient Temperature(40℃)
7. Low Ripple/Noise
8. MTBF Above 40000 HRS AT 25℃
9. LVD authentication
10. Limited power sources(LPS)
11. CEC IV and V Efficiency
12. Cispr22 CLASS B FCC Part 15 CLASS B

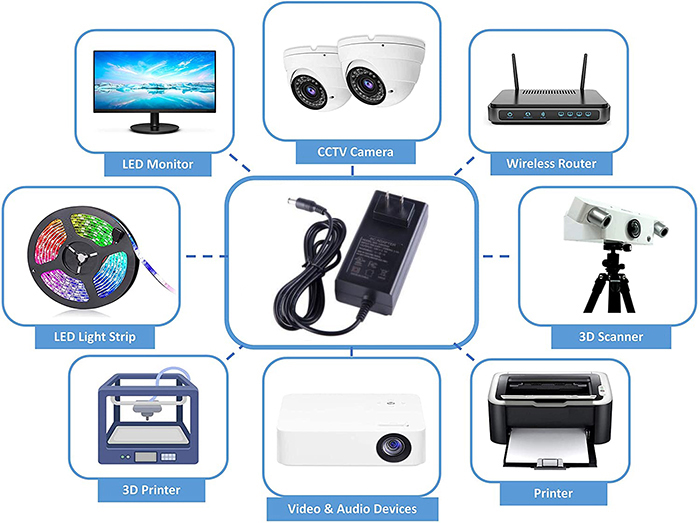

LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, ADSL, Digital Photo Frame,
Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio,
Security System Products, Medical Facilities, Massage Products, Electronics Products etc.
1. Universal Input 100~240VAC 50/60Hz
2. Over voltage protection: 120%min
3. Over current protection: 120%min
4. Over protection
5. Short-circuit protection: automatic recovery
6. Load regulation: ± 5%
7. Green Circuit Design
8. High Efficiency
