high quality full amperes 32v 1.5a 48W dc power supply 32Volt 1.5Amp ktec ac adapter from U L TUV standard shenzhen factory

Description:

Model：TDX-3201500

Power：48W Max

Output Voltage：DC 32V

Output current: 1.5A

Input：AC 100-240V, 50/60Hz

Efficiency: DoE ERP VI Level/CEC level VI

Describe specifications, standards and certificates:

Inlet :C6 C8 C14 Grounded

AC power cord: US EU UK AU plug

DC cable length: 1m/1.2m/1.5m/2m(customized)

DC tip:2.5*0.7/3.0*1.1/ 3.5*13.5/3.5*15/5.0*2.1/5.5*2.5mm(can be customized)

Material:PC fireproof material, ABS

Standard：IEC60950, IEC60065, EN62368,EN60950

[email protected] Chat now

Product Description:

Model	TDX3201500
Series	48W series
Input voltage	AC 100V-240V
Input frequency	50Hz~60Hz
Output	32V 1.5A
current ripple	90mv p-p<()<100mv p-p
Operating Temperature	-10°C-45°C
Operating Humidity	5%-90%RH
Storage Temperature	-20°C-85°C
Storage Humidity	5%-90%RH

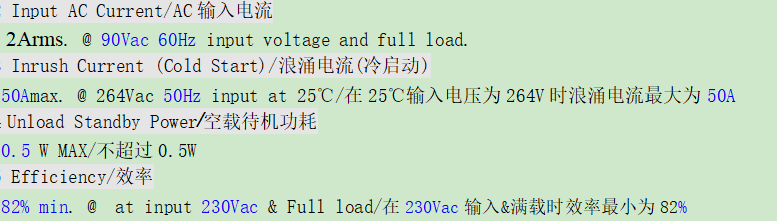

Inrush current	≤50A/240V
Turn-on delay time	≤ 2S
No Load power consumption	<0.21W
Operation Model	Constant voltage and constant current
Energy standard	ERP/DOE
Safety standard	IEC/EN60950/EN/IEC62368 GB4943 EN55032 FCCpart15 IEC60950 EN60950 EN6001 EN55022 EN55024
Environmental Protection	Rohs/REACH
Cooling temperature	Natural cooling
safety proctection	Built-OVP OCP SCP
Energy Efficiency	87%
Line consume	2%
Load rate	5%

Features and Benefits:

1. Over-Voltage protection

2. Over-Current protection

3. Short-Circuit protection

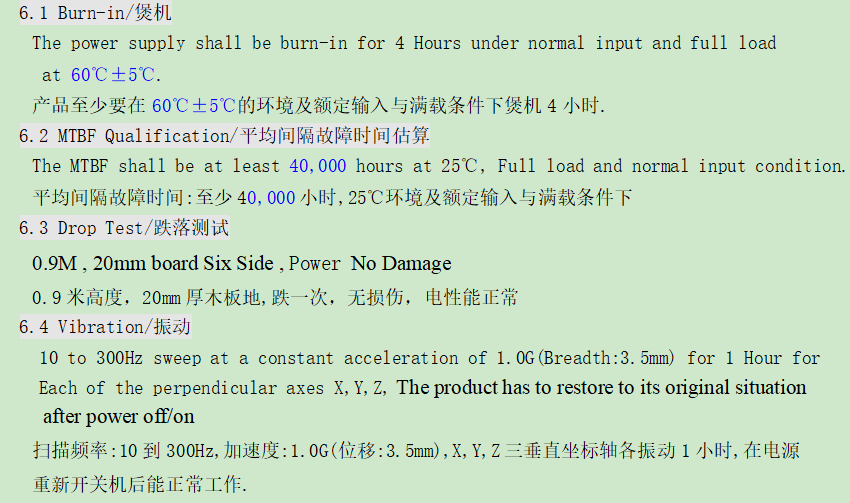

4. 100% Hi-pot&ATE(Chroma) Tested

5. 100% Burn-in under High

6. Ambient Temperature(40℃)

7. Low Ripple/Noise

8. MTBF Above 40000 HRS AT 25℃

9. LVD authentication

10. DOE ERP IV Efficiency

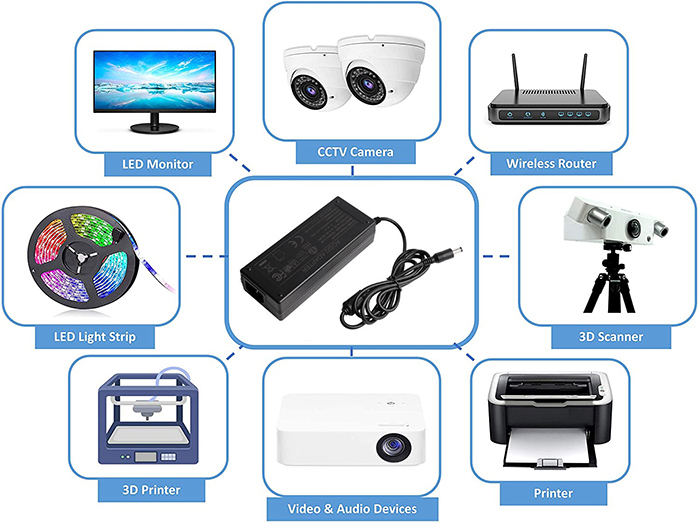

Application:

LED Lights, LED Strips, Vacuum Cleaner Robot, Humidifier, Massage Pillow, Air Cleaner, Set Top Box, Router, POS Machine, Label Printer, Thermal Printer, Aquarium, Water Purifier, Mini Projector, 3D Printer, Scooter, Car Fridge, Nail Polisher, External Hard Disk, Drone, DVR, NVR, CCTV Security Camera.

Safety Specifications:

Universal Input 100~240VAC 50/60Hz
over voltage protection: 120%min
over current protection: 120%min
over protection
Short-circuit protection: automatic recovery
Load regulation: ± 5%
Green Circuit Design
High Efficiency

Certification:UL,ETL,CE,GS,SAA,PSE,ROHS,FCC,KC
