MOQ:500pcs
Delivery time :18-23 working days
Warranty:2 years
When charge in red,Finish in yellow.
For E bike :Yes
1. High efficiency and low operation temperature
2. AC input power suitable for the world
3. Soft-start current can reduce the AC input impact efficiency
4. With short-circuit and overload protection
5. Compact size ,light weight
6. 100%full-load burning test
7. Installed with EMI filter ,minimum wave
Input voltage range | 90-264V |
Input voltage Frequency | 47-67Hz |
Output voltage | 25.2V |
Output current | 3A |
Output power | 75W |
AC Plug (optional) | 3C,US,AU,EU,UK,KC plug |
Output ripple and noise | 120mvp at full road with 20MHz bandwidth |
Size | 116.5*50*31.7mm |
Net weight | 190g |
Output voltage Adjustable rate | 5% |
No-load Power Comsuption | <0.21W |
Energy Efficiency Standard | 90% |
Transistor connecting method | Single-ended type |
Turn On Delay Time | <3S (AC:110V and full load) |
Color | black or customization |
Protection | SCP,OVP,OLP,OTP, OCP |
Packaging detail | PE bag or as your requirements |
Working humidity | 20-90% RH |
Storage Temp & Humidity | -20- 85 ℃ |
Warranty | 24 Months |
Safety Standard | IEC60950,EN60950,EN6001,EN55022,EN55024 |
certification | CE,GS,ROHs ,SAA,CB,IEC,CCC,FCC |
Sample | 2 free samples |

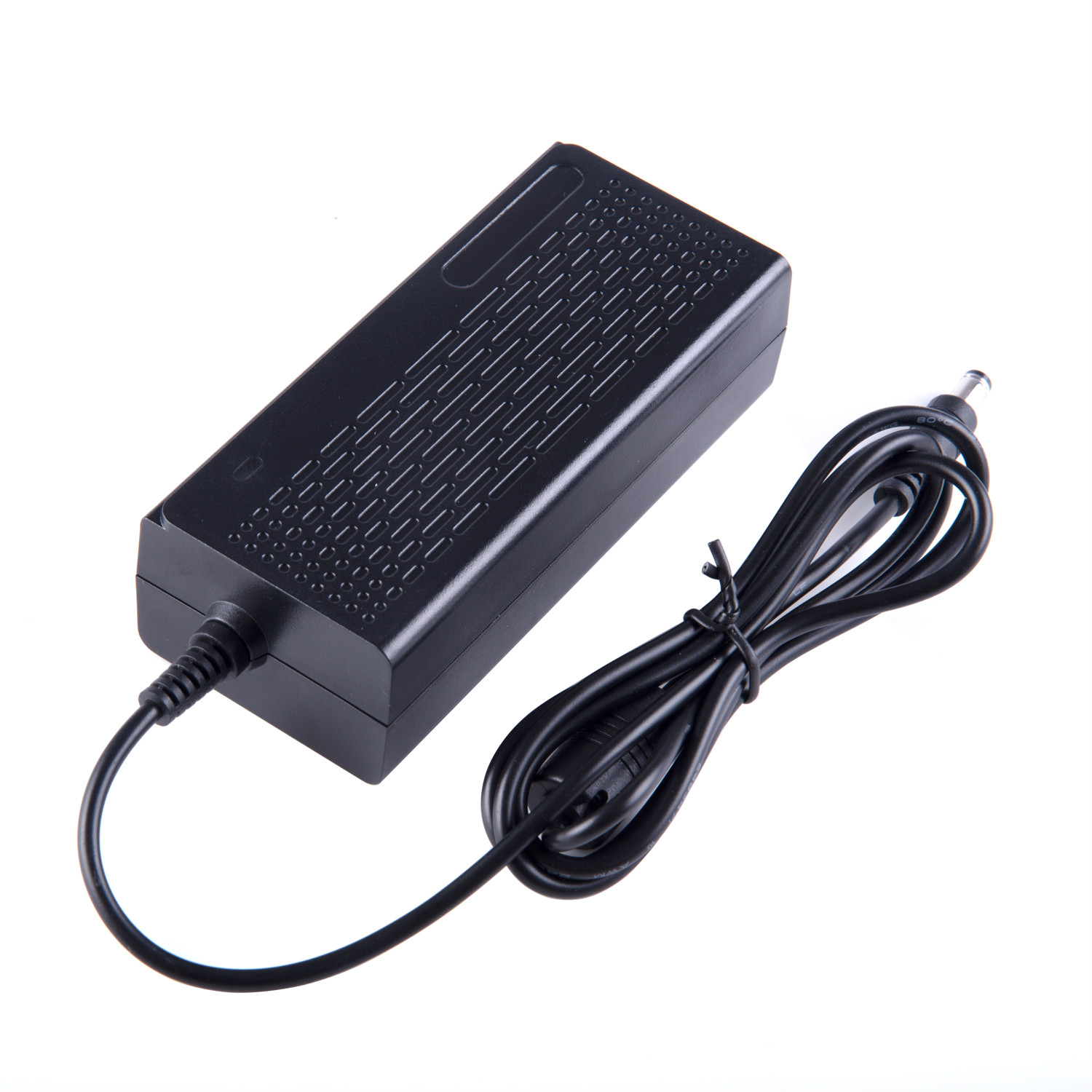

Outside Case 116.5*50*31.7mm
ABS+PC Fireproof ,ROHS Metarial
AC Inlet :C6 C8 C14,2 Prong/3Prong with GND
Hitpot:1500V 3 Prong,3000V 2Prong
Universal Input 100~240VAC 50/60Hz
over voltage protection: 120%min
over current protection: 120%min
over protection
Short-circuit protection: automatic recovery
Load regulation: ± 5%
Green Circuit Design
High Efficiency
