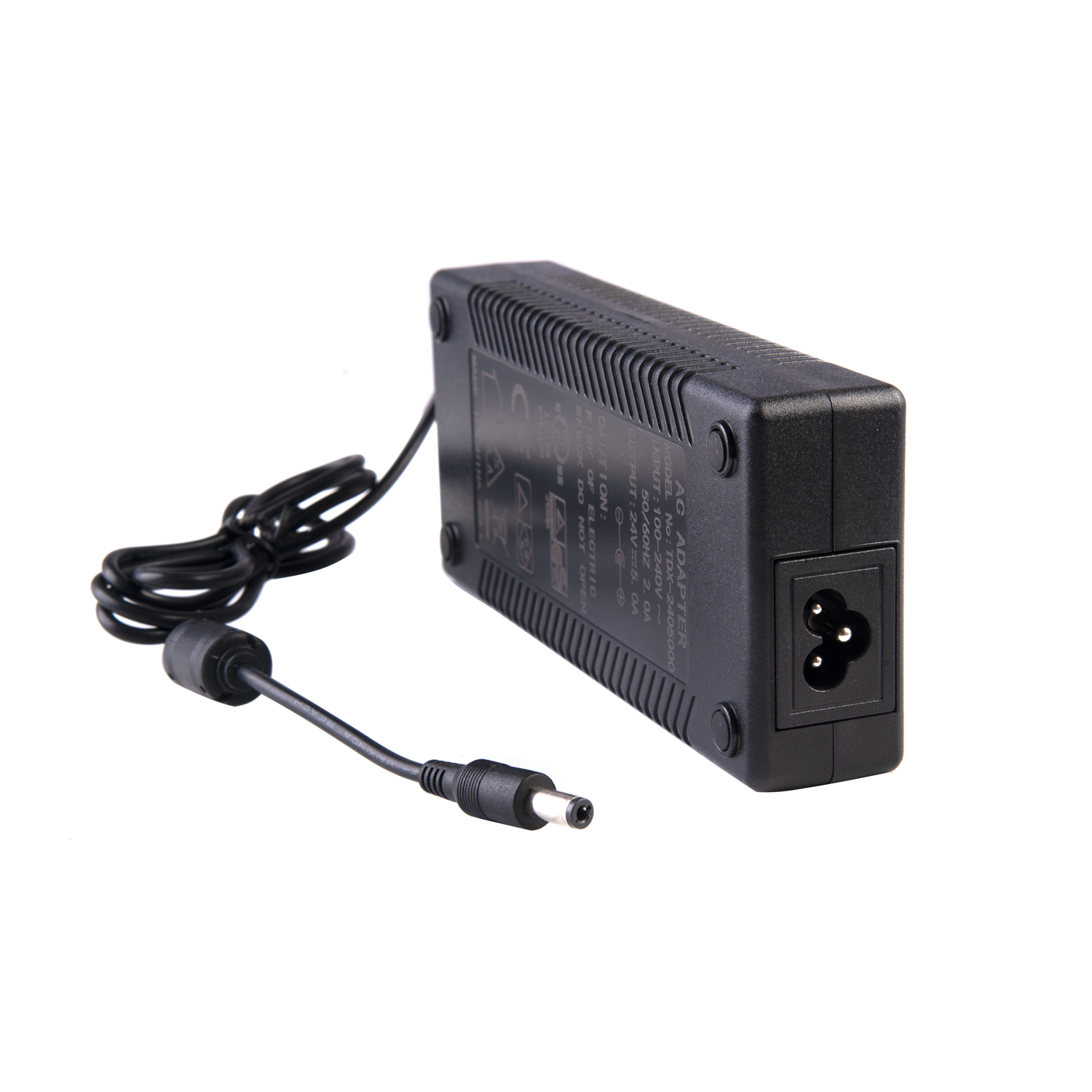

• Model：TDX-1906320
• Power：120W Max
• Output Voltage：DC 5~48V
• Input：AC 100-240V~0.5A 50-60Hz
• Efficiency：ERP VI Level

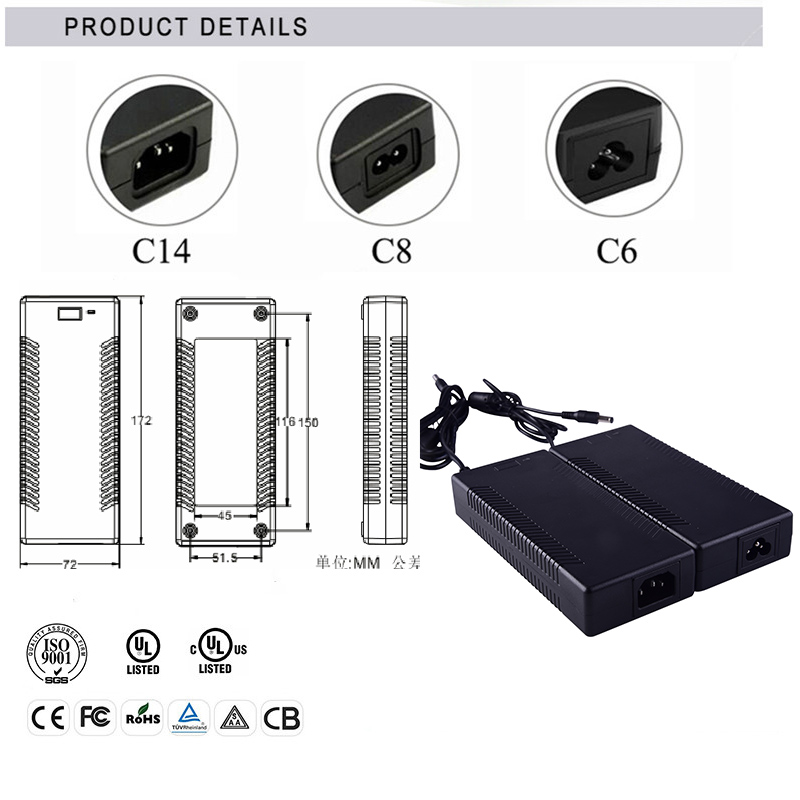

• Inlet :C8 C14 C6
• Standard：IEC60950, IEC60065, EN62368,EN60950
• Certification: RoHS,ETL,CE,GS,SAA,FCC，UL
Input voltage range | 90-264V |
Input voltage Frequency | 47-67Hz |
Output voltage | 19V |
Output current | 6.32A |
Output power | 120W |
AC Plug (optional) | 3C,US,AU,EU,UK,KC plug |
Output ripple and noise | 120mvp at full road with 20MHz bandwidth |
Size | 172*72*32mm |
Net weight | 420g |
Output voltage Adjustable rate | 5% |
No-load Power Comsuption | <0.5W |
Energy Efficiency Standard | 90% |
Transistor connecting method | Single-ended type |
Turn On Delay Time | <3S (AC:110V and full load) |
Color | black or customization |
Protection | SCP,OVP,OLP,OTP, OCP |
Packaging detail | PE bag or as your requirements |
Working humidity | 20-90% RH |
Work Temp | -10℃ --- 40℃ |
Storage Temp & Humidity | -20- 85 ℃ |
Warranty | 24 Months |
Safety Standard | IEC60950,EN60950,EN6001,EN55022,EN55024 |
certification | CE,GS,ROHS,SAA,CB,IEC,CUS,CCC,FCC |
Sample | 2 free samples |
1. High efficiency and low operation temperature
2. AC input power suitable for the world
3. Soft-start current can reduce the AC input impact efficiency
4. With short-circuit and overload protection
5. Compact size ,light weight
6. 100%full-load burning test
7. Installed with EMI filter ,minimum wave
3D Printer,CCTV Camera,LCD Display,Projector,LED strip,Wireless Router , E-Bike and so on
Universal Input 100~240VAC 50/60Hz
over voltage protection: 120%min
over current protection: 120%min
over protection
Short-circuit protection: automatic recovery
Load regulation: ± 5%
Green Circuit Design
High Efficiency
UL,ETL,CE,GS,SAA,PSE,ROHS,FCC
