120W Universal Laptop AC DC Power Adapter Charger 20V 5.8A 116W ETL CE GS SAA Power Supply 20V 5800mA Notebook Adaptor-120W-Power Adapter Suppliers-Shenzhen Teng Da Xing Electronic Co., Ltd.

Home>Desktop>120W

120W Universal Laptop AC DC Power Adapter Charger 20V 5.8A 116W ETL CE GS SAA Power Supply 20V 5800mA Notebook Adaptor

Description:

Outside Case 172*72*32mm

ABS+PC Fireproof ,ROHS Metarial

AC Inlet :C6 C8 C14,2 Prong/3Prong with GND

Hitpot:1500V 3 Prong,3000V 2Prong

UL CE GS SAA ROHS FCC DOE VI KC

Describe specifications, standards and certificates:

1. High efficiency and low operation temperature
2. AC input power suitable for the world
3. Soft-start current can reduce the AC input impact efficiency
4. With short-circuit and overload protection
5. Compact size ,light weight
6. 100%full-load burning test
7. Installed with EMI filter ,minimum wave

[email protected] Chat now

Product Description:

Power Supply Adapter

Certification:
FCC

Brand Name:
TDX-2005000

Model Number:
TDX

Usage:
Camera, phone, laptop, LED display radio, video machines,, security systems

Output Type:
DC

Connection:
Desktop

Color:
Black

Condition:
BRAND NEW

Protection:
Short Circuit Protection, OLP, ocp, ovp, OTP, Short Circuit Protection

Material:
PC Fireproof Material, ABS

Place of Origin:
Guangdong, China

Item:
20V 5.8A

Wattage:
126W

Size::
172*72*32mm

Warranty:
2 years

Input:
AC 100-240V~1.5A 50-60Hz
Cable line:
1.2m,also can be customized
Plug:
EU,UK,US,AU ,CN
DC connector:
5.5*2.5mm / 5.5*2.1mm/Coaxial Connector

Features and Benefits:

Universal Input 100~240VAC 50/60Hz
over voltage protection: 120%min
over current protection: 120%min
over protection
Short-circuit protection: automatic recovery
Load regulation: ± 5%
Green Circuit Design
High Efficiency

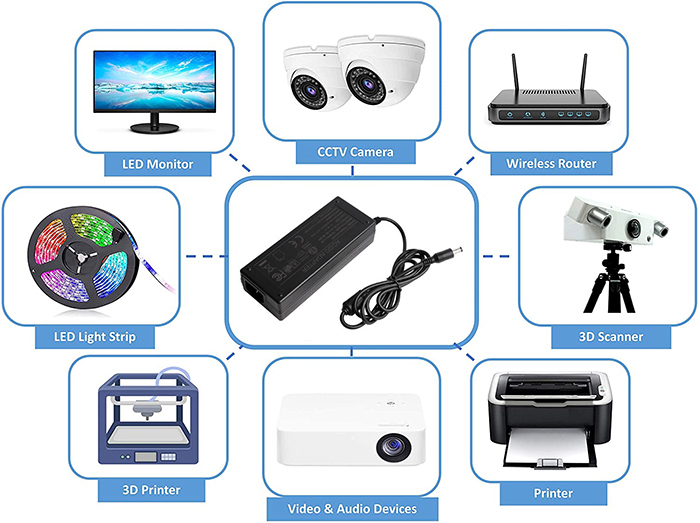

Application:

Safety Specifications:

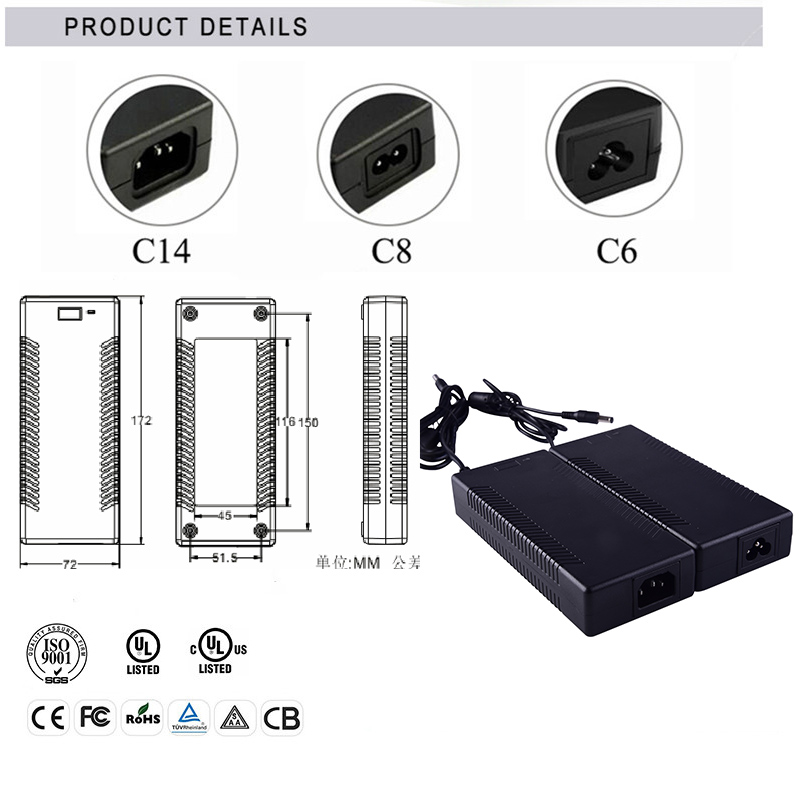

120W 尺寸图.jpg
