Model：TDX-1202000
Power：24W Max
Output Voltage：DC 12V
Output current: 2A
Input：AC 100-240V, 50/60Hz
Efficiency: DoE ERP VI Level

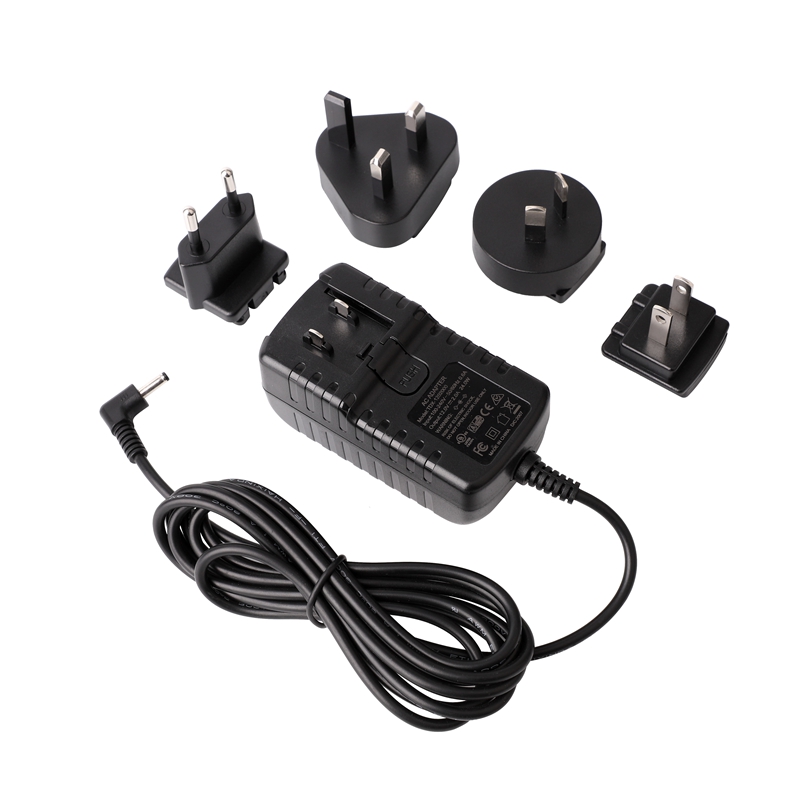

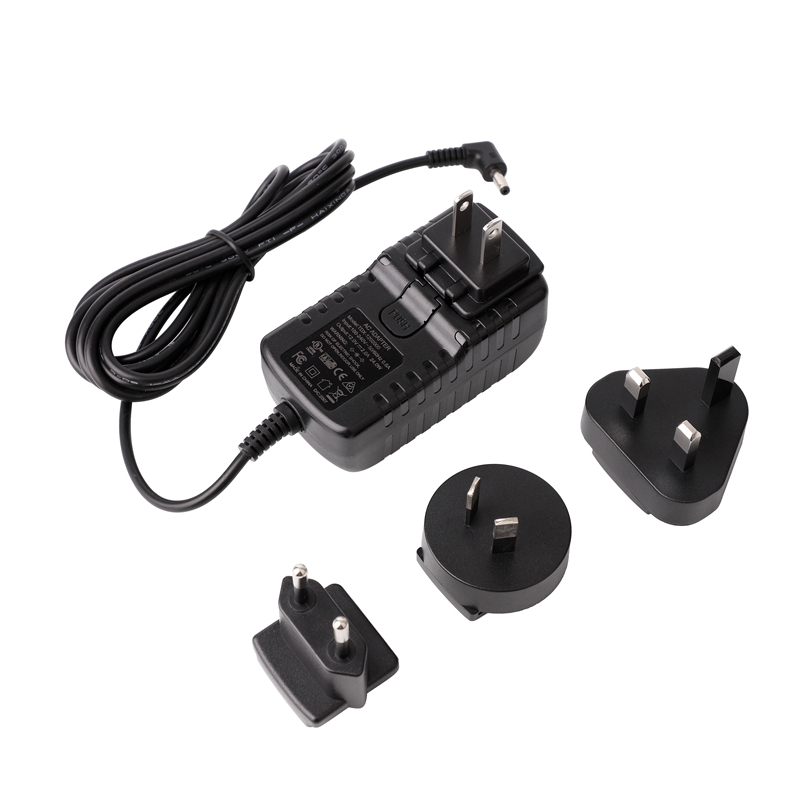

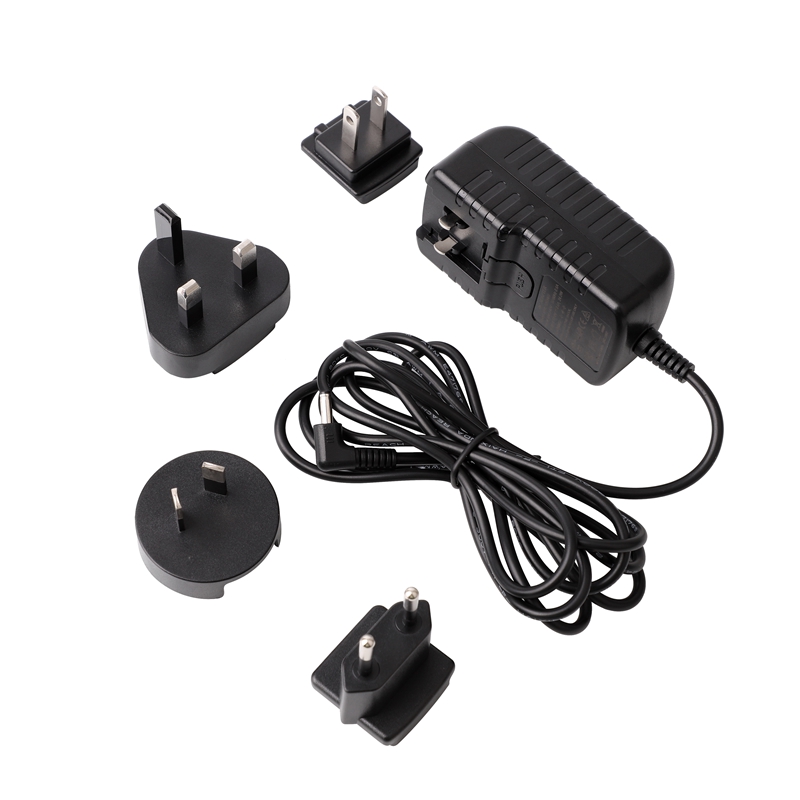

power adapter+detachable plug(EU UK AU US JP Korean)
DC cable length: 1m/1.2m/1.5m/2m(customized)
DC tip:2.5*0.7/3.0*1.1/ 3.5*13.5/3.5*15/5.0*2.1/5.5*2.5mm(can be customized)
Standard：IEC60950, IEC60065, EN62368,EN60950
Model | TDX1202000 |
Series | 24W series |
Input voltage | AC 100V-240V |
Input frequency | 50Hz~60Hz |
Output | 12V 2A |
current ripple | 90mv p-p<()<100mv p-p |
Operating Temperature | -10°C-45°C |
Operating Humidity | 5%-90%RH |
Storage Temperature | -20°C-85°C |
Storage Humidity | 5%-90%RH |

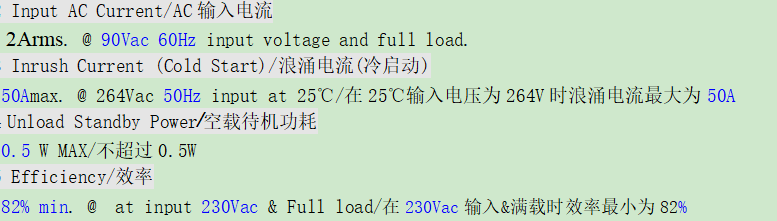

Inrush current | ≤50A/240V |
Turn-on delay time | ≤ 2S |
No Load power consumption | <0.21W |
Operation Model | Constant voltage and constant current |
Energy standard | ERP/DOE |
Safety standard | IEC/EN60950/EN/IEC62368 GB4943 EN55032 FCCpart15 IEC60950 EN60950 EN6001 EN55022 EN55024 |
Environmental Protection | Rohs/REACH |
Cooling temperature | Natural cooling |
safety proctection | Built-OVP OCP SCP |
Energy Efficiency | 87% |
Line consume | 2% |
Load rate | 5% |
1. Over-Voltage protection
2. Over-Current protection
3. Short-Circuit protection

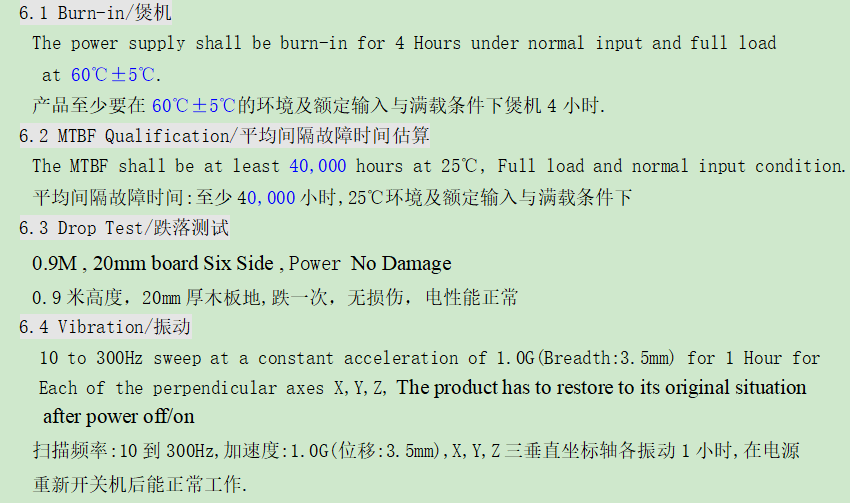

4. 100% Hi-pot&ATE(Chroma) Tested
5. 100% Burn-in under High
6. Ambient Temperature(40℃)
7. Low Ripple/Noise
8. MTBF Above 40000 HRS AT 25℃
9. LVD authentication
10. DOE ERP IV Efficiency

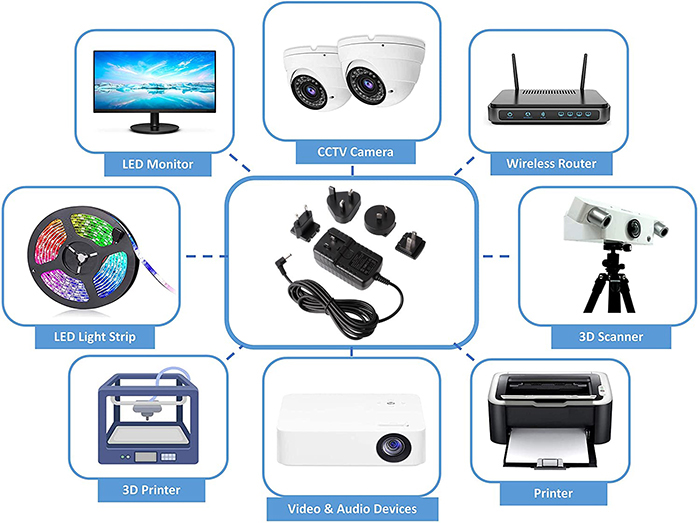

LED Lights, LED Strips, Vacuum Cleaner Robot, Humidifier, Massage Pillow, Air Cleaner, Set Top Box, Router, POS Machine, Label Printer, Thermal Printer, Aquarium, Water Purifier, Mini Projector, 3D Printer, Scooter, Car Fridge, Nail Polisher, External Hard Disk, Drone, DVR, NVR, CCTV Security Camera.
LED Lights, LED Strips, Vacuum Cleaner Robot, Humidifier, Massage Pillow, Air Cleaner, Set Top Box, Router, POS Machine, Label Printer, Thermal Printer, Aquarium, Water Purifier, Mini Projector, 3D Printer, Scooter, Car Fridge, Nail Polisher, External Hard Disk, Drone, DVR, NVR, CCTV Security Camera.
