Interchangeable plug power adapter 12V 2A power supply charger 12 Volt 2 Amp AC DC adaptor

Description:

• Model：TDX-1202000

• Power：24W Max

• Output Voltage：DC 12V

• Input：AC 100-240V, 50/60Hz

• Efficiency: DoE ERP VI Level

Describe specifications, standards and certificates:

• Plug: US EU UK AU plug

• Standard: IEC62368, IEC60950, EN62368, EN60950

• Certifications: UL,CE,FCC,ETL,GS,CB,BS,SAA,PSE,KC

[email protected] Chat now

Product Description:

Model No.	TDX-1202000
AC Input	100-240v 50/60hz
DC Output	12V 2A
DC connector	5.5x2.1mm, 5.5x2.5mm, 3.5x1.35mm or others
DC Cable Length	1m/1.2m/1.5m/1.8m/2m/2.5m/3m or customized
AC plug	US, EU, UK, AU (opitional)
Dimension	934536mm
Weight	162g
Protection	Over voltage, Over current, Short circuit, Over temperature
Line Regulation	±2%
Load Regulation	±5%
Operation Temperature	0 to +60℃
Storage Temperature	-10 to +85℃
Warranty	2 years

Features and Benefits:

1. Over-Voltage protection

2. Over-Current protection

3. Short-Circuit protection

4. 100% Hi-pot&ATE(Chroma) Tested

5. 100% Burn-in under High

6. Ambient Temperature(40℃)

7. Low Ripple/Noise

8. MTBF Above 40000 HRS AT 25℃

9. LVD authentication

10. DOE ERP IV Efficiency

Application:

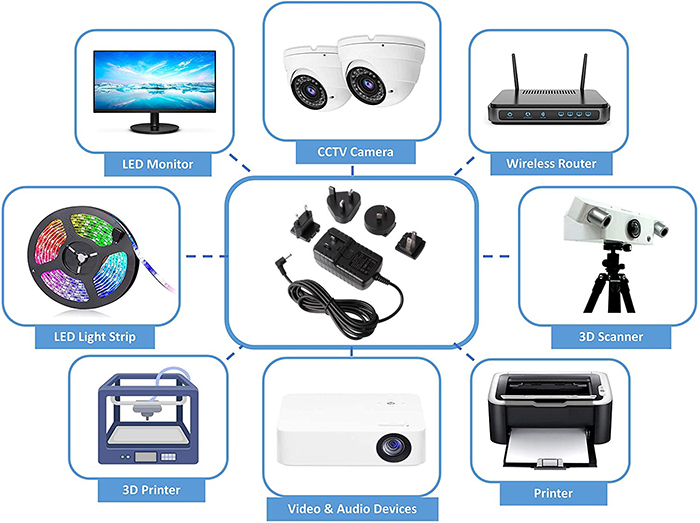

LED Lights, LED Strips, Vacuum Cleaner Robot, Humidifier, Massage Pillow, Air Cleaner, Set Top Box, Router, POS Machine, Label Printer, Thermal Printer, Aquarium, Water Purifier, Mini Projector, 3D Printer, Scooter, Car Fridge, Nail Polisher, External Hard Disk, Drone, DVR, NVR, CCTV Security Camera.

apl 可换头 24.jpg

Safety Specifications:

• Standard: IEC62368, IEC60950, EN62368, EN60950

• Certifications: UL,CE,FCC,ETL,GS,CB,BS,SAA,PSE,KC
